Drying Oven : Everything You Need to Know

In fields such as laboratory research, biopharmaceutical research and development, industrial testing and other related fields, sample drying is an indispensable and critical procedure. A stable and precisely controlled drying oven not only guarantees the accuracy of experimental data but also serves as core equipment to improve overall work efficiency. To meet the high requirements of laboratories for drying efficiency, temperature control accuracy and operational convenience, we have launched a new generation of laboratory drying ovens, which redefine drying standards through professional configuration and innovative design.

一、Product Core Introduction

Our new generation drying oven is specially designed for laboratory applications, integrating efficient drying, precise temperature control and reliable safety performance. It is widely used in sample drying, solvent removal, constant temperature testing, material aging experiments and other routine laboratory operations. The oven features a compact and reasonable modular structure, making it suitable for limited laboratory space while providing sufficient internal capacity to handle different batches of samples.

At the heart of the oven is a high-precision digital temperature control system paired with a large LCD display. It supports precise temperature control ranging from room temperature up to 200℃, with a control accuracy of ±1℃. In addition, the instrument is equipped with multi-segment programming functions, allowing users to customize heating curves and holding durations. This flexibility enables adjustable working parameters according to the drying characteristics of different samples, adapting to a variety of experimental schemes.

二、Core Product Advantages

1.High Energy Efficiency & Improved Drying Performance

The oven is equipped with a high-efficiency circulating fan and optimized air duct design. Its forced hot air circulation system ensures temperature uniformity within ±2℃, preventing incomplete drying or local overheating caused by uneven heat distribution. Compared with traditional ovens, the hot air circulation efficiency is increased by approximately 40%, and drying time is shortened by more than 30%, greatly improving laboratory productivity. Meanwhile, high-performance insulation materials reduce heat loss, achieving energy-saving operation.

2.Comprehensive Safety Protection System

Safety is a top priority in laboratory equipment. Our new drying oven is equipped with multiple safety protections. It includes over-temperature alarm and automatic power-off functions: if the internal temperature exceeds the set range, the system alerts and cuts off the heating power automatically to prevent sample damage and safety hazards. The door lock adopts an anti-scald and safe design to avoid burns during operation. An independent overheat protection device is also built-in, which triggers automatic shutdown in case of abnormal high temperature, fully protecting both users and equipment.

3.Easy Operation & Wide Adaptability

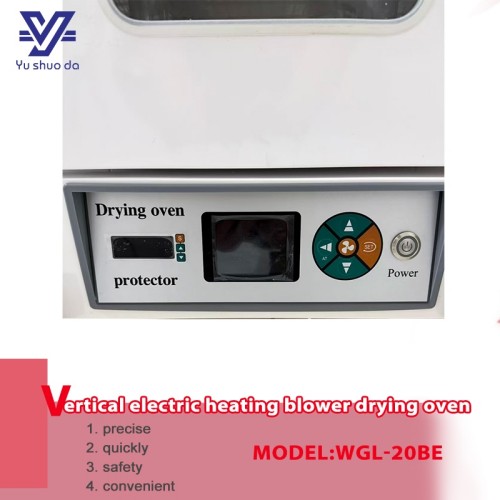

The control panel is simple and intuitive, with a large LCD clearly showing temperature, time, operating status and other key parameters. The button layout is sensitive and user-friendly, allowing new operators to master usage quickly. The instrument supports a timing function adjustable from 0 to 9999 minutes, with automatic shutdown and alarm upon completion. The inner chamber is made of stainless steel, which is corrosion-resistant, easy to clean, and avoids cross-contamination from residual samples, extending the service life of the equipment.

三、Key Functional Features

1.Precise Temperature Control and Display

The digital control system supports real-time monitoring and accurate adjustment. The large-screen display ensures clear readability and supports switching between ℃ and ℉ units to suit different laboratory preferences.

2.Forced Hot Air Circulation

The uniform air circulation design eliminates drying dead spots, improves consistency across samples, and enhances overall drying efficiency.

3. Multiple Specifications Available

We offer a range of internal chamber sizes, from compact benchtop models to larger industrial-grade units, allowing customers to choose according to their capacity needs.

4.Low-Noise Operation

Optimized fan and structural design reduce operating noise to below 50 decibels, creating a quiet and comfortable laboratory environment.

5.Parameter Memory Function

The oven automatically stores commonly used working parameters, avoiding repeated settings and saving operation time for repeated experiments.

四、Standard Usage Method

Step 1: Placement and Inspection

Place the drying oven on a flat, well-ventilated surface away from flammable and explosive materials. Ensure proper grounding and that the power voltage matches the rated voltage of the device. Check the power cord, fan, temperature control system and other components for integrity, and confirm the inner chamber is clean and free of debris.

Step 2: Loading Samples

Place samples to be dried on stainless steel trays or racks, arranging them properly without overstacking to maintain smooth air circulation. Select an appropriately sized model based on sample volume and quantity, then close and lock the oven door securely.

Step 3: Parameter Setting

Connect the power supply and turn on the main switch. Use the control panel to set target temperature, holding time and operating mode. For multi-segment programs, set each stage’s temperature and duration step by step. Confirm all parameters and start the operation.

Step 4: Operation and Monitoring

During operation, monitor real-time temperature, time and status via the display. If abnormal temperature, unusual noise or other malfunctions occur, stop the machine immediately for inspection. Minimize opening the door during drying to prevent heat loss and maintain stable performance.

Step 5: Shutdown and Sample Removal

Once the set time is reached, the oven stops automatically and alerts the user. Wait until the internal temperature cools down to a safe level (below 60℃) before opening the door. Use heat-resistant gloves to remove samples to avoid burns. Finally, tidy the chamber and turn off the power supply.

五、About Us

We are a professional manufacturer focused on R&D, production and sales of laboratory equipment and consumables. Committed to quality and innovation, we provide reliable, precise and safe instruments for laboratories worldwide.

If you are interested in our drying oven series, welcome to contact us for detailed specifications, quotations and customized solutions. We look forward to cooperating with you and supporting your research and testing with stable and high-performance equipment.
