1.Why Laser Marking is Transforming Pathology Labs

In histology and pathology laboratories, accurate, durable, and error-free labeling of embedding cassettes is the foundation of reliable patient diagnosis and research. Handwritten or traditional printed labels are prone to fading, smudging, and human error, risking misidentification and compromising the integrity of tissue samples.

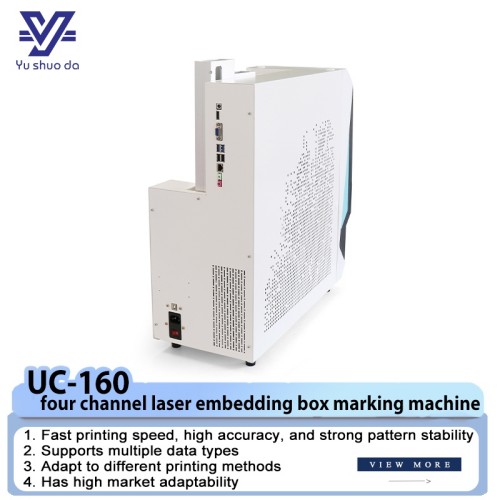

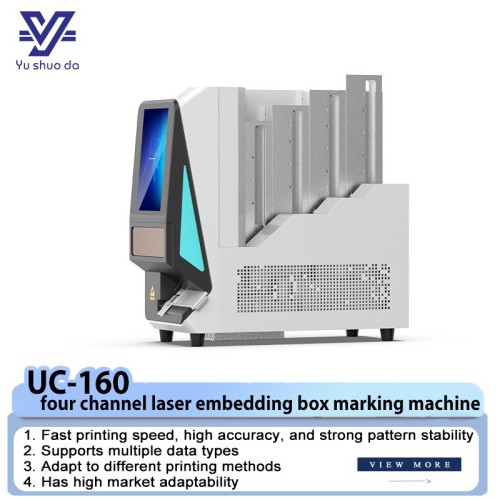

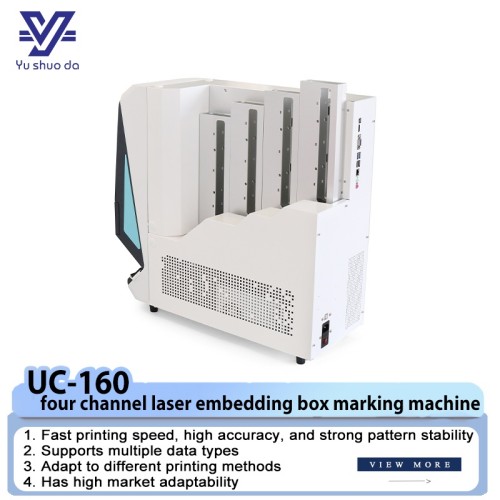

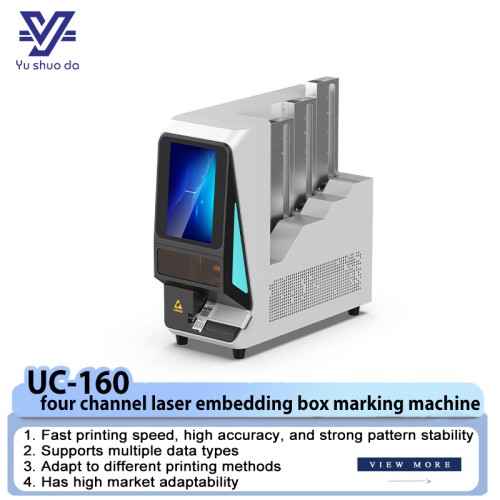

TheUC-160 Laser Embedding Cassette Marking Machine is designed to solve these challenges with non-contact UV cold light source laser marking technology. This advanced system delivers high-speed, high-precision, permanent marking on all types of embedding cassettes, eliminating the need for ink or consumables. It is an indispensable tool for modern labs seeking efficiency, accuracy, and traceability in their workflows.

2. UC-160 Product Core Features & Advantages

2.1 High-Speed, High-Precision Marking

The UC-160 is built for speed and accuracy. It prints at an impressive rate of2.5-4 seconds per cassette, drastically reducing labeling bottlenecks in high-volume labs. With a resolution of up to 2500 dpi, it ensures sharp, clear text, barcodes, and symbols that remain legible even after harsh tissue processing, including formalin fixation, dehydration, and staining.

2.2 Universal Compatibility for All Cassette Types

Flexibility is key, and the UC-160 delivers. It supports a wide range of embedding cassettes:

· Standard lidless cassettes

· One-piece cassettes (with or without lids)

· Assembled cassettes (front or back-opened)With adjustable labeling angles (35° or 45°) and four loading channels, it can adapt to integrated or split embedding boxes, making it compatible with nearly all major cassette brands on the market.

2.3 Advanced & User-Friendly Operation

The machine features a10-inch LED touch screen with intuitive built-in software, allowing for easy text editing, barcode generation, and job management. It supports connection to external PCs and includes a built-in barcode scanner for seamless data input and verification. The system is fully compatible with LIS/HIS laboratory information systems, enabling direct data transfer and eliminating manual transcription errors.

2.4 Safe, Clean, and Low-Maintenance Design

The UC-160 prioritizes lab safety and cleanliness. It incorporates a built-in air purification system to filter out any potential fumes generated during marking. The maintenance window and detachable lateral panel allow for easy access for routine servicing. The non-contact UV laser technology means no ink, no ribbons, and no messy consumables to replace, reducing ongoing costs and environmental waste.

2.5 Large Capacity & Continuous Workflow

Designed for efficiency, the UC-160 features four independent loading slots with a total capacity of 40 integrated cassettes or 100 split cassettes. The extended collection tank holds up to 8 cassettes, allowing for uninterrupted operation.

3. How to Use the UC-160: A Step-by-Step Guide

3.1 Required Equipment & Consumables

· UC-160 Laser Marking Machine

· Embedding cassettes (compatible types as listed above)

· Power supply (100-240 VAC, 50/60 Hz)

· Optional: LIS/HIS system connection

3.2 Operation Steps

1. Preparation & Loading: Power on the machine and unlock the safety lock. Load your cassettes into the designated loading hoppers (A or B). The machine's status indicator will confirm the loading process.

2. Job Setup: On the touch screen, create or import your labeling job. Input text, barcodes, or patient data. The built-in software allows you to adjust font, size, and marking position.

3. Verification & Start: Use the barcode scanner to verify data if needed. Confirm all settings and press start. The UC-160 will automatically feed, mark, and eject cassettes.

4. Monitoring & Collection: The status light bar will show the progress of the job. Completed cassettes are collected in the extended collection tank.

5. Shutdown & Maintenance: Once the job is complete, turn off the machine. Perform routine checks on the activated carbon filter and clean the exterior with a soft cloth.

4. Why Choose the UC-160 for Your Lab?

· Zero Consumables Cost: Laser marking requires no ink, ribbons, or labels, saving significant operational costs over time.

· Permanent & Tamper-Proof Marking: The laser etches directly into the plastic, creating markings that are resistant to chemicals, solvents, and fading.

· Eliminate Human Error: Direct data transfer from LIS/HIS systems removes the risk of typos and mislabeling.

· Boost Lab Efficiency: High-speed processing and continuous workflow capabilities significantly reduce turnaround times.

· Improve Sample Traceability: Clear, scannable barcodes enable full digital tracking of samples throughout the entire laboratory process.

5. About Us

Shenyang Yu Shuo Da Science And Technology Ltd. is a professional manufacturer of laboratory equipment and consumables. We focus on product quality and continuous improvement, committed to providing customers with high-quality products and thoughtful service.

If you are interested in the UC-160 Laser Embedding Cassette Marking Machine or other lab products, please feel free to contact us for detailed specifications, quotations, and customized solutions.
